Initial Query
Write me a C program that emits a .bmp that's a depiction of an italian flag to stdout.
LLM Generation
Query
Write me a C program that emits a .bmp that's a depiction of an italian flag to stdout.
Output
# Italian Flag BMP Generator
Here's a C program that generates a BMP image of the Italian flag and writes it to standard output:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117 | #include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
// BMP file header structure
typedef struct {
uint16_t type; // "BM" (0x4D42)
uint32_t size; // File size in bytes
uint16_t reserved1; // Always 0
uint16_t reserved2; // Always 0
uint32_t offset; // Offset to image data in bytes
} __attribute__((packed)) BMPHeader;
// DIB header structure (BITMAPINFOHEADER)
typedef struct {
uint32_t size; // DIB header size in bytes (40)
int32_t width; // Width of the image
int32_t height; // Height of the image
uint16_t planes; // Number of color planes
uint16_t bpp; // Bits per pixel
uint32_t compression; // Compression method
uint32_t imagesize; // Image size in bytes
int32_t xresolution; // Horizontal resolution in pixels per meter
int32_t yresolution; // Vertical resolution in pixels per meter
uint32_t ncolors; // Number of colors in the palette
uint32_t importantcolors; // Number of important colors
} __attribute__((packed)) DIBHeader;
int main() {
// Define Italian flag colors (BGR format for BMP)
const uint8_t ITALIAN_GREEN[] = {69, 140, 0}; // RGB: 0, 140, 69
const uint8_t ITALIAN_WHITE[] = {255, 255, 255}; // RGB: 255, 255, 255
const uint8_t ITALIAN_RED[] = {42, 33, 205}; // RGB: 205, 33, 42
// Define flag dimensions
const int width = 600; // 3 parts of 200 pixels each
const int height = 400; // 2:3 aspect ratio
const int band_width = width / 3;
// Calculate padding for rows (BMP rows are padded to multiples of 4 bytes)
const int padding = (4 - (width * 3) % 4) % 4;
const int row_size = width * 3 + padding;
// Calculate image data size
const int image_size = row_size * height;
// Set up BMP header
BMPHeader bmp_header = {
.type = 0x4D42, // "BM"
.size = sizeof(BMPHeader) + sizeof(DIBHeader) + image_size,
.reserved1 = 0,
.reserved2 = 0,
.offset = sizeof(BMPHeader) + sizeof(DIBHeader)
};
// Set up DIB header
DIBHeader dib_header = {
.size = sizeof(DIBHeader),
.width = width,
.height = height, // Positive means bottom-up
.planes = 1,
.bpp = 24, // 24 bits per pixel (3 bytes)
.compression = 0, // No compression
.imagesize = image_size,
.xresolution = 2835, // 72 DPI in pixels/meter
.yresolution = 2835, // 72 DPI in pixels/meter
.ncolors = 0, // No color palette
.importantcolors = 0 // All colors are important
};
// Write BMP header to stdout
fwrite(&bmp_header, sizeof(BMPHeader), 1, stdout);
// Write DIB header to stdout
fwrite(&dib_header, sizeof(DIBHeader), 1, stdout);
// Allocate memory for a row of pixels
uint8_t *row = (uint8_t *)malloc(row_size);
if (!row) {
fprintf(stderr, "Memory allocation failed\n");
return 1;
}
// Set padding bytes to zero
for (int p = 0; p < padding; p++) {
row[width * 3 + p] = 0;
}
// Generate and write pixel data (bottom-up)
for (int y = height - 1; y >= 0; y--) {
for (int x = 0; x < width; x++) {
const uint8_t *color;
// Determine color based on x position
if (x < band_width) {
color = ITALIAN_GREEN;
} else if (x < 2 * band_width) {
color = ITALIAN_WHITE;
} else {
color = ITALIAN_RED;
}
// Set pixel color (BGR)
row[x * 3] = color[0];
row[x * 3 + 1] = color[1];
row[x * 3 + 2] = color[2];
}
// Write row to stdout
fwrite(row, row_size, 1, stdout);
}
// Clean up
free(row);
return 0;
}
|
## How to use it
Compile and redirect the output to a file:
| gcc italian_flag.c -o italian_flag
./italian_flag > italy.bmp
|

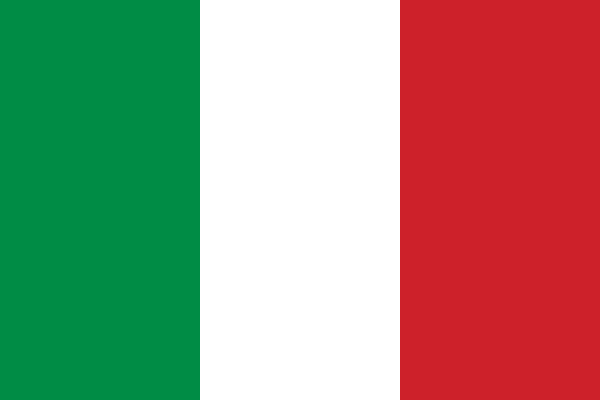

This will create a 600x400 pixel BMP image with the Italian flag (vertical tricolor with green, white, and red bands).
## Notes
1. The program uses 24-bit color depth (3 bytes per pixel)
2. The Italian flag colors are specified in BGR format (BMP standard)
3. The flag has a 2:3 height-to-width ratio
4. Each color band has equal width
Extract Code
I extracted the following code from that output:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117 | #include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
// BMP file header structure
typedef struct {
uint16_t type; // "BM" (0x4D42)
uint32_t size; // File size in bytes
uint16_t reserved1; // Always 0
uint16_t reserved2; // Always 0
uint32_t offset; // Offset to image data in bytes
} __attribute__((packed)) BMPHeader;
// DIB header structure (BITMAPINFOHEADER)
typedef struct {
uint32_t size; // DIB header size in bytes (40)
int32_t width; // Width of the image
int32_t height; // Height of the image
uint16_t planes; // Number of color planes
uint16_t bpp; // Bits per pixel
uint32_t compression; // Compression method
uint32_t imagesize; // Image size in bytes
int32_t xresolution; // Horizontal resolution in pixels per meter
int32_t yresolution; // Vertical resolution in pixels per meter
uint32_t ncolors; // Number of colors in the palette
uint32_t importantcolors; // Number of important colors
} __attribute__((packed)) DIBHeader;
int main() {
// Define Italian flag colors (BGR format for BMP)
const uint8_t ITALIAN_GREEN[] = {69, 140, 0}; // RGB: 0, 140, 69
const uint8_t ITALIAN_WHITE[] = {255, 255, 255}; // RGB: 255, 255, 255
const uint8_t ITALIAN_RED[] = {42, 33, 205}; // RGB: 205, 33, 42
// Define flag dimensions
const int width = 600; // 3 parts of 200 pixels each
const int height = 400; // 2:3 aspect ratio
const int band_width = width / 3;
// Calculate padding for rows (BMP rows are padded to multiples of 4 bytes)
const int padding = (4 - (width * 3) % 4) % 4;
const int row_size = width * 3 + padding;
// Calculate image data size
const int image_size = row_size * height;
// Set up BMP header
BMPHeader bmp_header = {
.type = 0x4D42, // "BM"
.size = sizeof(BMPHeader) + sizeof(DIBHeader) + image_size,
.reserved1 = 0,
.reserved2 = 0,
.offset = sizeof(BMPHeader) + sizeof(DIBHeader)
};
// Set up DIB header
DIBHeader dib_header = {
.size = sizeof(DIBHeader),
.width = width,
.height = height, // Positive means bottom-up
.planes = 1,
.bpp = 24, // 24 bits per pixel (3 bytes)
.compression = 0, // No compression
.imagesize = image_size,
.xresolution = 2835, // 72 DPI in pixels/meter
.yresolution = 2835, // 72 DPI in pixels/meter
.ncolors = 0, // No color palette
.importantcolors = 0 // All colors are important
};
// Write BMP header to stdout
fwrite(&bmp_header, sizeof(BMPHeader), 1, stdout);
// Write DIB header to stdout
fwrite(&dib_header, sizeof(DIBHeader), 1, stdout);
// Allocate memory for a row of pixels
uint8_t *row = (uint8_t *)malloc(row_size);
if (!row) {
fprintf(stderr, "Memory allocation failed\n");
return 1;
}
// Set padding bytes to zero
for (int p = 0; p < padding; p++) {
row[width * 3 + p] = 0;
}
// Generate and write pixel data (bottom-up)
for (int y = height - 1; y >= 0; y--) {
for (int x = 0; x < width; x++) {
const uint8_t *color;
// Determine color based on x position
if (x < band_width) {
color = ITALIAN_GREEN;
} else if (x < 2 * band_width) {
color = ITALIAN_WHITE;
} else {
color = ITALIAN_RED;
}
// Set pixel color (BGR)
row[x * 3] = color[0];
row[x * 3 + 1] = color[1];
row[x * 3 + 2] = color[2];
}
// Write row to stdout
fwrite(row, row_size, 1, stdout);
}
// Clean up
free(row);
return 0;
}
|
Run Code Interpreter
Running the following program:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117 | #include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
// BMP file header structure
typedef struct {
uint16_t type; // "BM" (0x4D42)
uint32_t size; // File size in bytes
uint16_t reserved1; // Always 0
uint16_t reserved2; // Always 0
uint32_t offset; // Offset to image data in bytes
} __attribute__((packed)) BMPHeader;
// DIB header structure (BITMAPINFOHEADER)
typedef struct {
uint32_t size; // DIB header size in bytes (40)
int32_t width; // Width of the image
int32_t height; // Height of the image
uint16_t planes; // Number of color planes
uint16_t bpp; // Bits per pixel
uint32_t compression; // Compression method
uint32_t imagesize; // Image size in bytes
int32_t xresolution; // Horizontal resolution in pixels per meter
int32_t yresolution; // Vertical resolution in pixels per meter
uint32_t ncolors; // Number of colors in the palette
uint32_t importantcolors; // Number of important colors
} __attribute__((packed)) DIBHeader;
int main() {
// Define Italian flag colors (BGR format for BMP)
const uint8_t ITALIAN_GREEN[] = {69, 140, 0}; // RGB: 0, 140, 69
const uint8_t ITALIAN_WHITE[] = {255, 255, 255}; // RGB: 255, 255, 255
const uint8_t ITALIAN_RED[] = {42, 33, 205}; // RGB: 205, 33, 42
// Define flag dimensions
const int width = 600; // 3 parts of 200 pixels each
const int height = 400; // 2:3 aspect ratio
const int band_width = width / 3;
// Calculate padding for rows (BMP rows are padded to multiples of 4 bytes)
const int padding = (4 - (width * 3) % 4) % 4;
const int row_size = width * 3 + padding;
// Calculate image data size
const int image_size = row_size * height;
// Set up BMP header
BMPHeader bmp_header = {
.type = 0x4D42, // "BM"
.size = sizeof(BMPHeader) + sizeof(DIBHeader) + image_size,
.reserved1 = 0,
.reserved2 = 0,
.offset = sizeof(BMPHeader) + sizeof(DIBHeader)
};
// Set up DIB header
DIBHeader dib_header = {
.size = sizeof(DIBHeader),
.width = width,
.height = height, // Positive means bottom-up
.planes = 1,
.bpp = 24, // 24 bits per pixel (3 bytes)
.compression = 0, // No compression
.imagesize = image_size,
.xresolution = 2835, // 72 DPI in pixels/meter
.yresolution = 2835, // 72 DPI in pixels/meter
.ncolors = 0, // No color palette
.importantcolors = 0 // All colors are important
};
// Write BMP header to stdout
fwrite(&bmp_header, sizeof(BMPHeader), 1, stdout);
// Write DIB header to stdout
fwrite(&dib_header, sizeof(DIBHeader), 1, stdout);
// Allocate memory for a row of pixels
uint8_t *row = (uint8_t *)malloc(row_size);
if (!row) {
fprintf(stderr, "Memory allocation failed\n");
return 1;
}
// Set padding bytes to zero
for (int p = 0; p < padding; p++) {
row[width * 3 + p] = 0;
}
// Generate and write pixel data (bottom-up)
for (int y = height - 1; y >= 0; y--) {
for (int x = 0; x < width; x++) {
const uint8_t *color;
// Determine color based on x position
if (x < band_width) {
color = ITALIAN_GREEN;
} else if (x < 2 * band_width) {
color = ITALIAN_WHITE;
} else {
color = ITALIAN_RED;
}
// Set pixel color (BGR)
row[x * 3] = color[0];
row[x * 3 + 1] = color[1];
row[x * 3 + 2] = color[2];
}
// Write row to stdout
fwrite(row, row_size, 1, stdout);
}
// Clean up
free(row);
return 0;
}
|
And got the output:
LLM Generation
Query
What flag is shown in this image?
Output
The flag shown in the image is the national flag of Italy.
Check if any of the following conditions are true:
Substring Evaluation
Testing if the previous output contains the string Italian: False
Substring Evaluation
Testing if the previous output contains the string Italy: True
Final Answer: True
Initial Query
Write me a C program that emits a .bmp that's a depiction of an italian flag to stdout.
LLM Generation
Query
Write me a C program that emits a .bmp that's a depiction of an italian flag to stdout.
Output
# Italian Flag BMP Generator
Below is a C program that generates a BMP image of the Italian flag and outputs it to stdout:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113 | #include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
// BMP file header (14 bytes)
typedef struct {
uint16_t signature; // "BM"
uint32_t fileSize; // Size of the BMP file in bytes
uint16_t reserved1; // Reserved
uint16_t reserved2; // Reserved
uint32_t dataOffset; // Offset to pixel data
} __attribute__((packed)) BMPHeader;
// DIB header - BITMAPINFOHEADER (40 bytes)
typedef struct {
uint32_t headerSize; // Size of this header (40 bytes)
int32_t width; // Width of the image
int32_t height; // Height of the image
uint16_t planes; // Number of color planes
uint16_t bitsPerPixel; // Bits per pixel
uint32_t compression; // Compression method
uint32_t imageSize; // Size of image data
int32_t xPixelsPerM; // Horizontal resolution
int32_t yPixelsPerM; // Vertical resolution
uint32_t colorsUsed; // Number of colors in palette
uint32_t colorsImportant; // Number of important colors
} __attribute__((packed)) DIBHeader;
// Pixel structure (BGR format)
typedef struct {
uint8_t blue;
uint8_t green;
uint8_t red;
} __attribute__((packed)) Pixel;
int main() {
// Set stdout to binary mode for Windows compatibility
#ifdef _WIN32
_setmode(_fileno(stdout), _O_BINARY);
#endif
const int width = 300;
const int height = 200;
// Calculate the size of the BMP file
int rowSize = width * sizeof(Pixel);
int paddingSize = (4 - (rowSize % 4)) % 4; // Padding to make row size multiple of 4
int dataSize = (rowSize + paddingSize) * height;
int fileSize = sizeof(BMPHeader) + sizeof(DIBHeader) + dataSize;
// Create BMP header
BMPHeader bmpHeader = {
.signature = 0x4D42, // "BM" in little-endian
.fileSize = fileSize,
.reserved1 = 0,
.reserved2 = 0,
.dataOffset = sizeof(BMPHeader) + sizeof(DIBHeader)
};
// Create DIB header
DIBHeader dibHeader = {
.headerSize = sizeof(DIBHeader),
.width = width,
.height = height,
.planes = 1,
.bitsPerPixel = 24, // 24 bits per pixel (RGB)
.compression = 0, // No compression
.imageSize = dataSize,
.xPixelsPerM = 2835, // ~72 DPI
.yPixelsPerM = 2835, // ~72 DPI
.colorsUsed = 0,
.colorsImportant = 0
};
// Define the colors for the Italian flag (in BGR format)
Pixel green = {0, 140, 69}; // Green
Pixel white = {255, 255, 255}; // White
Pixel red = {41, 43, 205}; // Red
// Calculate stripe width (each stripe is 1/3 of the width)
int stripeWidth = width / 3;
// Output headers to stdout
fwrite(&bmpHeader, sizeof(BMPHeader), 1, stdout);
fwrite(&dibHeader, sizeof(DIBHeader), 1, stdout);
// Output pixel data (BMP stores rows bottom-to-top)
uint8_t padding[3] = {0, 0, 0}; // Padding bytes
for (int y = height - 1; y >= 0; y--) {
for (int x = 0; x < width; x++) {
Pixel pixel;
// Determine stripe color
if (x < stripeWidth) {
pixel = green; // Left stripe: green
} else if (x < 2 * stripeWidth) {
pixel = white; // Middle stripe: white
} else {
pixel = red; // Right stripe: red
}
fwrite(&pixel, sizeof(Pixel), 1, stdout);
}
// Add padding at end of each row if needed
if (paddingSize > 0) {
fwrite(padding, paddingSize, 1, stdout);
}
}
return 0;
}
|
## How to Use
1. Save this code to a file named `italian_flag.c`
2. Compile it:
| gcc italian_flag.c -o italian_flag
|
3. Run it and redirect the output to a BMP file:
| ./italian_flag > flag.bmp
|
The program creates a 300x200 pixel BMP image with three equal vertical stripes in green, white, and red - the colors of the Italian flag.
## Notes
- The program uses the 24-bit BMP format (8 bits each for red, green, and blue)
- Colors are stored in BGR order in the BMP format
- The image has no compression
- The program adds necessary row padding to satisfy BMP format requirements
- For Windows compatibility, binary mode output would be needed (commented code is included)
Extract Code
I extracted the following code from that output:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113 | #include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
// BMP file header (14 bytes)
typedef struct {
uint16_t signature; // "BM"
uint32_t fileSize; // Size of the BMP file in bytes
uint16_t reserved1; // Reserved
uint16_t reserved2; // Reserved
uint32_t dataOffset; // Offset to pixel data
} __attribute__((packed)) BMPHeader;
// DIB header - BITMAPINFOHEADER (40 bytes)
typedef struct {
uint32_t headerSize; // Size of this header (40 bytes)
int32_t width; // Width of the image
int32_t height; // Height of the image
uint16_t planes; // Number of color planes
uint16_t bitsPerPixel; // Bits per pixel
uint32_t compression; // Compression method
uint32_t imageSize; // Size of image data
int32_t xPixelsPerM; // Horizontal resolution
int32_t yPixelsPerM; // Vertical resolution
uint32_t colorsUsed; // Number of colors in palette
uint32_t colorsImportant; // Number of important colors
} __attribute__((packed)) DIBHeader;
// Pixel structure (BGR format)
typedef struct {
uint8_t blue;
uint8_t green;
uint8_t red;
} __attribute__((packed)) Pixel;
int main() {
// Set stdout to binary mode for Windows compatibility
#ifdef _WIN32
_setmode(_fileno(stdout), _O_BINARY);
#endif
const int width = 300;
const int height = 200;
// Calculate the size of the BMP file
int rowSize = width * sizeof(Pixel);
int paddingSize = (4 - (rowSize % 4)) % 4; // Padding to make row size multiple of 4
int dataSize = (rowSize + paddingSize) * height;
int fileSize = sizeof(BMPHeader) + sizeof(DIBHeader) + dataSize;
// Create BMP header
BMPHeader bmpHeader = {
.signature = 0x4D42, // "BM" in little-endian
.fileSize = fileSize,
.reserved1 = 0,
.reserved2 = 0,
.dataOffset = sizeof(BMPHeader) + sizeof(DIBHeader)
};
// Create DIB header
DIBHeader dibHeader = {
.headerSize = sizeof(DIBHeader),
.width = width,
.height = height,
.planes = 1,
.bitsPerPixel = 24, // 24 bits per pixel (RGB)
.compression = 0, // No compression
.imageSize = dataSize,
.xPixelsPerM = 2835, // ~72 DPI
.yPixelsPerM = 2835, // ~72 DPI
.colorsUsed = 0,
.colorsImportant = 0
};
// Define the colors for the Italian flag (in BGR format)
Pixel green = {0, 140, 69}; // Green
Pixel white = {255, 255, 255}; // White
Pixel red = {41, 43, 205}; // Red
// Calculate stripe width (each stripe is 1/3 of the width)
int stripeWidth = width / 3;
// Output headers to stdout
fwrite(&bmpHeader, sizeof(BMPHeader), 1, stdout);
fwrite(&dibHeader, sizeof(DIBHeader), 1, stdout);
// Output pixel data (BMP stores rows bottom-to-top)
uint8_t padding[3] = {0, 0, 0}; // Padding bytes
for (int y = height - 1; y >= 0; y--) {
for (int x = 0; x < width; x++) {
Pixel pixel;
// Determine stripe color
if (x < stripeWidth) {
pixel = green; // Left stripe: green
} else if (x < 2 * stripeWidth) {
pixel = white; // Middle stripe: white
} else {
pixel = red; // Right stripe: red
}
fwrite(&pixel, sizeof(Pixel), 1, stdout);
}
// Add padding at end of each row if needed
if (paddingSize > 0) {
fwrite(padding, paddingSize, 1, stdout);
}
}
return 0;
}
|
Run Code Interpreter
Running the following program:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113 | #include <stdio.h>
#include <stdint.h>
#include <stdlib.h>
// BMP file header (14 bytes)
typedef struct {
uint16_t signature; // "BM"
uint32_t fileSize; // Size of the BMP file in bytes
uint16_t reserved1; // Reserved
uint16_t reserved2; // Reserved
uint32_t dataOffset; // Offset to pixel data
} __attribute__((packed)) BMPHeader;
// DIB header - BITMAPINFOHEADER (40 bytes)
typedef struct {
uint32_t headerSize; // Size of this header (40 bytes)
int32_t width; // Width of the image
int32_t height; // Height of the image
uint16_t planes; // Number of color planes
uint16_t bitsPerPixel; // Bits per pixel
uint32_t compression; // Compression method
uint32_t imageSize; // Size of image data
int32_t xPixelsPerM; // Horizontal resolution
int32_t yPixelsPerM; // Vertical resolution
uint32_t colorsUsed; // Number of colors in palette
uint32_t colorsImportant; // Number of important colors
} __attribute__((packed)) DIBHeader;
// Pixel structure (BGR format)
typedef struct {
uint8_t blue;
uint8_t green;
uint8_t red;
} __attribute__((packed)) Pixel;
int main() {
// Set stdout to binary mode for Windows compatibility
#ifdef _WIN32
_setmode(_fileno(stdout), _O_BINARY);
#endif
const int width = 300;
const int height = 200;
// Calculate the size of the BMP file
int rowSize = width * sizeof(Pixel);
int paddingSize = (4 - (rowSize % 4)) % 4; // Padding to make row size multiple of 4
int dataSize = (rowSize + paddingSize) * height;
int fileSize = sizeof(BMPHeader) + sizeof(DIBHeader) + dataSize;
// Create BMP header
BMPHeader bmpHeader = {
.signature = 0x4D42, // "BM" in little-endian
.fileSize = fileSize,
.reserved1 = 0,
.reserved2 = 0,
.dataOffset = sizeof(BMPHeader) + sizeof(DIBHeader)
};
// Create DIB header
DIBHeader dibHeader = {
.headerSize = sizeof(DIBHeader),
.width = width,
.height = height,
.planes = 1,
.bitsPerPixel = 24, // 24 bits per pixel (RGB)
.compression = 0, // No compression
.imageSize = dataSize,
.xPixelsPerM = 2835, // ~72 DPI
.yPixelsPerM = 2835, // ~72 DPI
.colorsUsed = 0,
.colorsImportant = 0
};
// Define the colors for the Italian flag (in BGR format)
Pixel green = {0, 140, 69}; // Green
Pixel white = {255, 255, 255}; // White
Pixel red = {41, 43, 205}; // Red
// Calculate stripe width (each stripe is 1/3 of the width)
int stripeWidth = width / 3;
// Output headers to stdout
fwrite(&bmpHeader, sizeof(BMPHeader), 1, stdout);
fwrite(&dibHeader, sizeof(DIBHeader), 1, stdout);
// Output pixel data (BMP stores rows bottom-to-top)
uint8_t padding[3] = {0, 0, 0}; // Padding bytes
for (int y = height - 1; y >= 0; y--) {
for (int x = 0; x < width; x++) {
Pixel pixel;
// Determine stripe color
if (x < stripeWidth) {
pixel = green; // Left stripe: green
} else if (x < 2 * stripeWidth) {
pixel = white; // Middle stripe: white
} else {
pixel = red; // Right stripe: red
}
fwrite(&pixel, sizeof(Pixel), 1, stdout);
}
// Add padding at end of each row if needed
if (paddingSize > 0) {
fwrite(padding, paddingSize, 1, stdout);
}
}
return 0;
}
|
And got the output:
LLM Generation
Query
What flag is shown in this image?
Output
The flag shown in the image is the national flag of Italy. It consists of three vertical stripes of green, white, and red.
Check if any of the following conditions are true:
Substring Evaluation
Testing if the previous output contains the string Italian: False
Substring Evaluation
Testing if the previous output contains the string Italy: True
Final Answer: True
